 Post subject: Re: Deep Cut Puzzle Mechanisms
PostPosted: Tue Aug 10, 2010 4:20 pm
Offline
User avatar

Joined: Wed Jan 28, 2009 7:55 pm
Location: Montana
This mech looks like it has far too many flanges. I'm not sure if this is just something that makes more sense in a 3-D analysis of the mech though.

_________________
Andreas Nortmann wrote:
Things like this are illegal.
If not I will pass an appropriate law.


Top
 Profile

 Post subject: Re: Deep Cut Puzzle Mechanisms
PostPosted: Tue Aug 10, 2010 4:47 pm
Offline
User avatar

Joined: Sat Apr 21, 2007 11:21 pm
Location: Marin, CA
My Pentultimate V2 (and improved V2.5) is using the mechanism you describe as "sand", although I think it's fine to call it simply a hidden "master" mechanism, even though it's coreless.

And the Drizzle is right that making a master layer is the easy part. Keeping everything working together is the fun thing. I explained that part of my mechanism to Oskar on the train to Hakone, Japan a few weeks ago during the IPP. :D

OK, back to work...


_________________
Jason Smith posted here as 'io' through 2012.
Visit Jason Smith's PuzzleForge on Shapeways!
Jason Smith's Puzzles - YouTube Channel.


Top
 Profile

 Post subject: Re: Deep Cut Puzzle Mechanisms
PostPosted: Tue Aug 10, 2010 8:12 pm
Offline
User avatar

Joined: Sun Jun 13, 2010 1:00 am
Location: Colorado
io wrote:
My Pentultimate V2 (and improved V2.5) is using the mechanism you describe as "sand", although I think it's fine to call it simply a hidden "master" mechanism, even though it's coreless.

It would be wrong to call it a hidden master mechanism because that would make people confuse it with the pentultimate mechanism. The outer two layers of both mechs may be similar but the rest is 100% different. Also, my sand mech can be used to make a 3x3x3 without hidden pieces so that would really contradict the mech name. Maybe the "3 layer sphere" mech?

Edt: To keep hidden layers aligned on all deep cut puzzles that use normal mechanisms, all you need to do is glue half of the hidden centers to the layer below so that they can't rotate.

_________________
My Shapeways Shop
My YouTube Videos
My Museum Puzzles


Last edited by PuzzleMaster6262 on Tue Aug 10, 2010 9:03 pm, edited 1 time in total.

Top
 Profile

 Post subject: Re: Deep Cut Puzzle Mechanisms
PostPosted: Tue Aug 10, 2010 9:01 pm
Offline
User avatar

Joined: Sat Apr 21, 2007 11:21 pm
Location: Marin, CA
It's been called a "dovetail" mech by Oskar. I think I've heard Bram call it a "staples" mech back in the day when I called it a "tabs" mech.

I've also called it a "mozaika" mech and a "void cube" mech.

But it's not a "new" mech, sorry.

_________________
Jason Smith posted here as 'io' through 2012.
Visit Jason Smith's PuzzleForge on Shapeways!
Jason Smith's Puzzles - YouTube Channel.


Top
 Profile

 Post subject: Re: Deep Cut Puzzle Mechanisms
PostPosted: Tue Aug 10, 2010 9:35 pm
Offline
User avatar

Joined: Sun Jun 13, 2010 1:00 am
Location: Colorado
It may not be a new mech but I'm pretty sure it is not one of the mechs you listed. Oskar's dovetail mech I couldn't find that many examples for but it looked like the other mechs you listed.

My mech is different for the same reason it is not a partial knucklehead mech. All those mechs use tabs to hold the pieces together. You can see them in the knucklehead mech picture on the first page(ofcourse you know that but others might not). My mech does not have tabs as you can see in the 3d file made by Garrett.

_________________
My Shapeways Shop
My YouTube Videos
My Museum Puzzles


Top
 Profile

 Post subject: Re: Deep Cut Puzzle Mechanisms
PostPosted: Tue Aug 10, 2010 10:04 pm
Offline
User avatar

Joined: Thu Apr 05, 2007 8:05 pm
Location: Seed-nee
Yeah, staples, that was the term Bram threw about for this. I knew it was something...

Sorry guy, Jason's right--it's not new.

_________________
я буду нуждаться пиво скоро.


Top
 Profile

 Post subject: Re: Deep Cut Puzzle Mechanisms
PostPosted: Tue Aug 10, 2010 10:14 pm
Offline
User avatar

Joined: Sun Jun 13, 2010 1:00 am
Location: Colorado
the.drizzle wrote:
Yeah, staples, that was the term Bram threw about for this. I knew it was something...

Sorry guy, Jason's right--it's not new.

O well :)
I still don't belive it is the staples mech but I do believe that out of the many briliant puzzle designers in the world it has atleast already been thought of.

_________________
My Shapeways Shop
My YouTube Videos
My Museum Puzzles


Top
 Profile

 Post subject: Re: Deep Cut Puzzle Mechanisms
PostPosted: Tue Aug 10, 2010 11:07 pm
Offline
User avatar

Joined: Fri Feb 06, 2009 2:57 pm
Location: Pittsburgh
io wrote:
It's been called a "dovetail" mech by Oskar. I think I've heard Bram call it a "staples" mech back in the day when I called it a "tabs" mech.

I've also called it a "mozaika" mech and a "void cube" mech.

But it's not a "new" mech, sorry.

Tabs mech is what I'd call it (and mentioned the "tabs" movement in an earlier post).

_________________
3x3x3 PB: 00:48.10
"Study gravitation, it's a field with a lot of potential."


Top
 Profile

 Post subject: Re: Deep Cut Puzzle Mechanisms
PostPosted: Wed Aug 11, 2010 6:58 pm
Offline
User avatar

Joined: Wed Aug 01, 2007 3:14 pm
Location: Orange County, CA

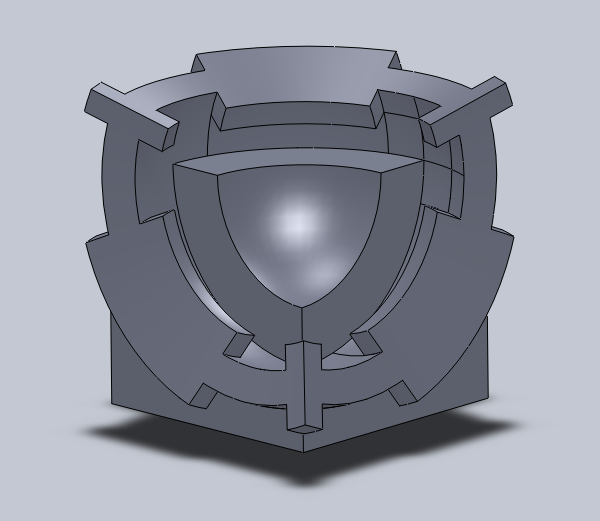

I have improved the "sand mech" somewhat and now I think it resembles Oskar's "Dovetail mech". It adds a hook and groove mechanism to the "Sand mech" so the puzzle does not rely on the sphere geometry to stay in one piece. This is what I came up with:

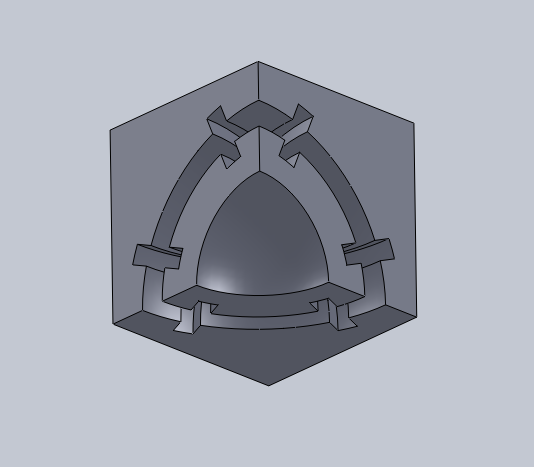

The last pic shows the 2x2 corner that will prevent the hidden layers from moving out of alignment. This method leaves you with a lot of parts that are unnecessary but sorting through which ones are needed and which ones aren't is fairly straightforward.

_________________
-Garrett


Top
 Profile

 Post subject: Re: Deep Cut Puzzle Mechanisms
PostPosted: Wed Aug 11, 2010 7:05 pm
Offline
User avatar

Joined: Sun Jun 13, 2010 1:00 am
Location: Colorado
The 3 layer spher mech(sand mech) I think should just stay as what it is. Your mech is a lot like the tab mech and could be considered a partial knucklehead mech.

_________________
My Shapeways Shop
My YouTube Videos
My Museum Puzzles


Top
 Profile

 Post subject: Re: Deep Cut Puzzle Mechanisms
PostPosted: Wed Aug 11, 2010 7:08 pm
Offline
User avatar

Joined: Wed Aug 01, 2007 3:14 pm
Location: Orange County, CA
:x

This IS the "3 layer sphere mech" just with tabs added so it doesn't just rely on the spherical geometry to hold the puzzle together!

have a look:

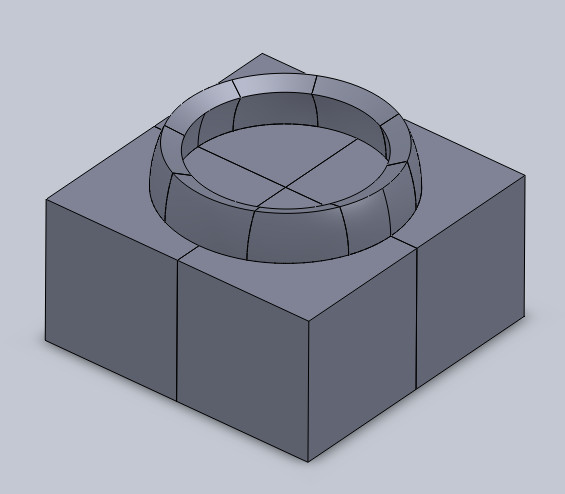

Original "3 Layer Sphere Mech"

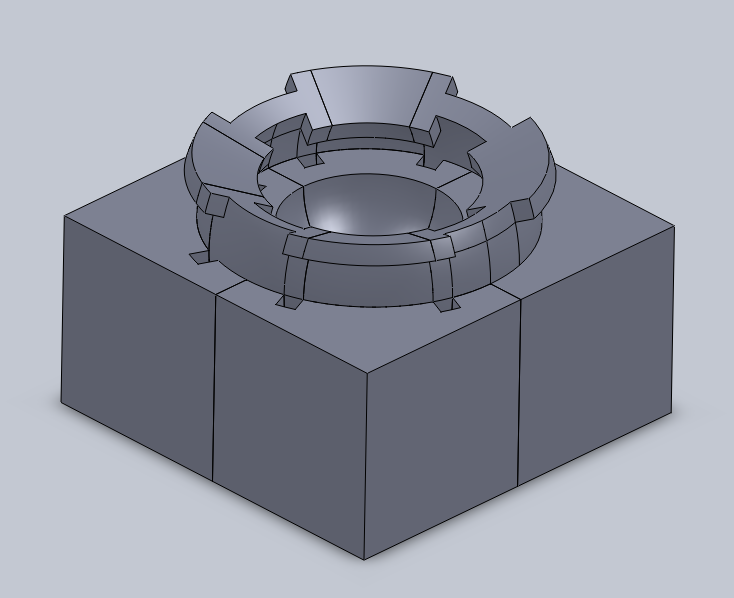

"3 Layer Sphere Mech" with added Tabs"


This is the same exact puzzle file, just with the master sketch tweaked to add the dovetails!

_________________
-Garrett


Top
 Profile

 Post subject: Re: Deep Cut Puzzle Mechanisms
PostPosted: Wed Aug 11, 2010 7:16 pm
Offline
User avatar

Joined: Thu Apr 05, 2007 8:05 pm
Location: Seed-nee
Again, it's been done before.

_________________
я буду нуждаться пиво скоро.


Top
 Profile

 Post subject: Re: Deep Cut Puzzle Mechanisms
PostPosted: Wed Aug 11, 2010 7:35 pm
Offline
User avatar

Joined: Mon Feb 04, 2008 8:57 pm
what really urks me still, and I'm not attacking you Puzzlemaster6262, but you seem so certain that your puzzle does not need mech changes, yet you clearly have a puzzle which has yet to function.

I would not be so quick to shoot down modification ideas. you need them. its how we all improve.

_________________


Top
 Profile

 Post subject: Re: Deep Cut Puzzle Mechanisms
PostPosted: Wed Aug 11, 2010 7:51 pm
Offline
User avatar

Joined: Sun Jun 13, 2010 1:00 am
Location: Colorado
Drewseph wrote:
what really urks me still, and I'm not attacking you Puzzlemaster6262, but you seem so certain that your puzzle does not need mech changes, yet you clearly have a puzzle which has yet to function.

I would not be so quick to shoot down modification ideas. you need them. its how we all improve.

My puzzle does need mech changes, but my mech doesn't need to be turned into a different mech. If anyone has any ideas for my cross cube, please post them in that thread. Anything here is just different deep cut mechs. My 3 layer mech may not be the best, but turning it into an already commen mech would be pointless.

_________________
My Shapeways Shop
My YouTube Videos
My Museum Puzzles


Top
 Profile

 Post subject: Re: Deep Cut Puzzle Mechanisms
PostPosted: Wed Aug 11, 2010 9:25 pm
Offline
User avatar

Joined: Fri Feb 06, 2009 2:57 pm
Location: Pittsburgh
PuzzleMaster6262 wrote:
Drewseph wrote:
what really urks me still, and I'm not attacking you Puzzlemaster6262, but you seem so certain that your puzzle does not need mech changes, yet you clearly have a puzzle which has yet to function.

I would not be so quick to shoot down modification ideas. you need them. its how we all improve.

My puzzle does need mech changes, but my mech doesn't need to be turned into a different mech. If anyone has any ideas for my cross cube, please post them in that thread. Anything here is just different deep cut mechs. My 3 layer mech may not be the best, but turning it into an already commen mech would be pointless.
If all that was added was the dovetails, it's already a common mech.

_________________
3x3x3 PB: 00:48.10
"Study gravitation, it's a field with a lot of potential."


Top
 Profile

 Post subject: Re: Deep Cut Puzzle Mechanisms
PostPosted: Wed Aug 11, 2010 11:01 pm
Offline
User avatar

Joined: Sun Jun 13, 2010 1:00 am
Location: Colorado
I'm not going to push my opinion, but I still think it is different.

_________________
My Shapeways Shop
My YouTube Videos
My Museum Puzzles


Top
 Profile

 Post subject: Re: Deep Cut Puzzle Mechanisms
PostPosted: Wed Aug 11, 2010 11:56 pm
Offline

Joined: Sat Mar 22, 2003 9:11 am
Location: Marin, CA
While the Pentultimate V2 does use staples, the mechanism it has for keeping the central bands aligned is very novel and interesting, while the straightforward use of staples, although executed very well in that puzzle, isn't particularly new.

Frequently when I say 'staples' I'm actually referring to staples with a gear added, which would cause them to always move at half rate. This is the elephant gun approach to deep cut puzzle mechanisms, which has never actually been used in a puzzle, although it directly inspired the Gear Cube. Given how well the shells approach has been demonstrated to work, it seems like a silly approach, but is by far the most plausible approach to the Big Chop anyone has suggested to date.
